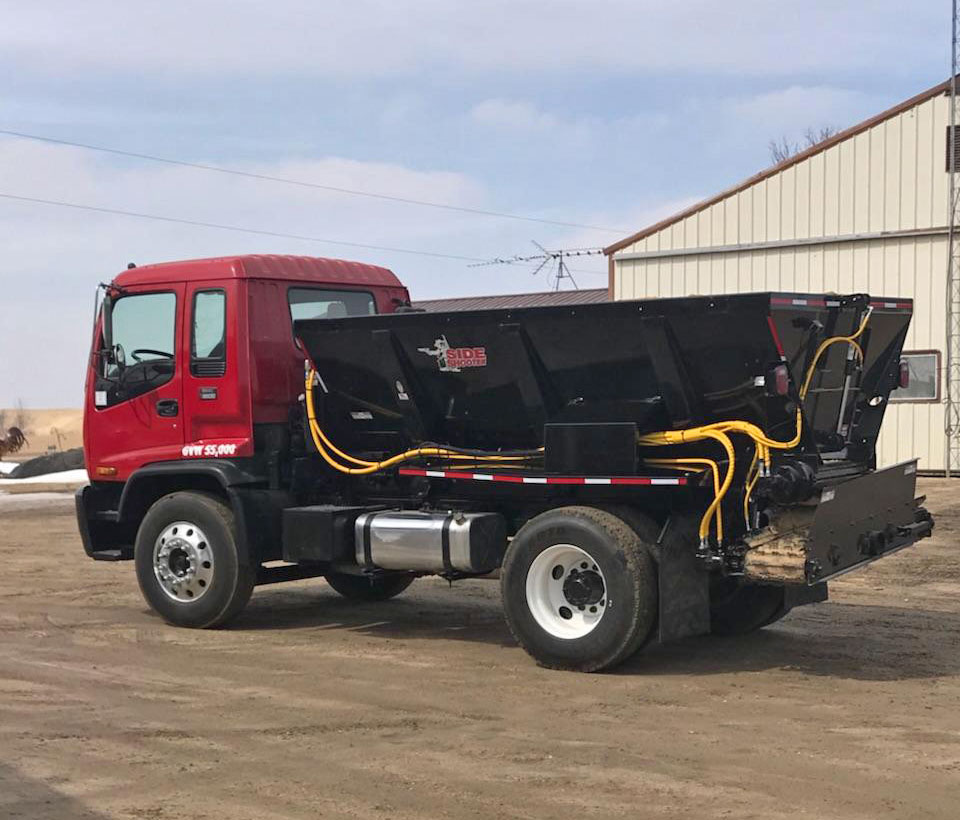

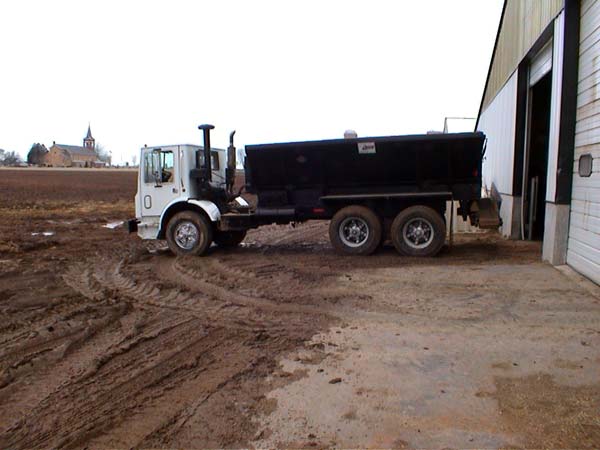

Truck Mount Side-Shooter

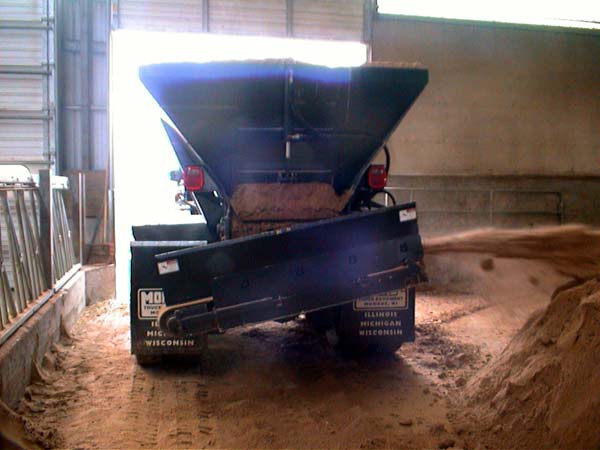

Truck Mount Side-Shooter are used to spread sand or sawdust in many applications including free stall barns. The Truck Mount Side-Shooter uses a main conveyor to transfer the material to a cross conveyor that dispenses the material 3ft to 25ft.
- Oscillating conveyor
- Unloads in 2 1/2 minutes
- Shoots 3-25 ft, depends on flow control, RPM speed, cross-conveyor angle, and material
- Dispenses contents from either side
- 3/16 steel box
- Optional remote control
- Triple sealed bearings on cross-conveyor
- Self-contained hydraulics w/ reservoir

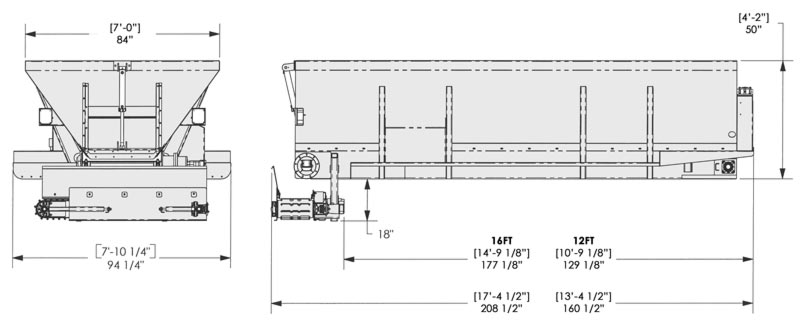

| Single Axle Truck | Yard Capacity | ||||
|---|---|---|---|---|---|
| T 3500-12 | 12' Truck Mount | 7-1/2 yd Struck | 6" Higher Box 9 yd Struck | ||
| Tandum Truck Axle | |||||
| T 3500-16 | 16' Truck Mount | 10 yd Struck | 6" Higher Box 12 yd Struck | ||
|
Owner manual available upon request
