Feed Alley Scrapers

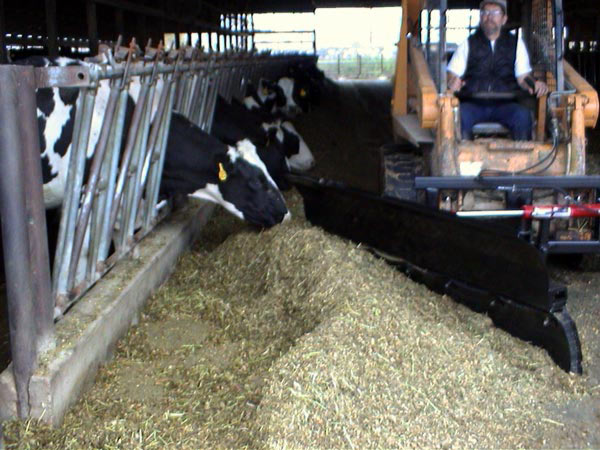

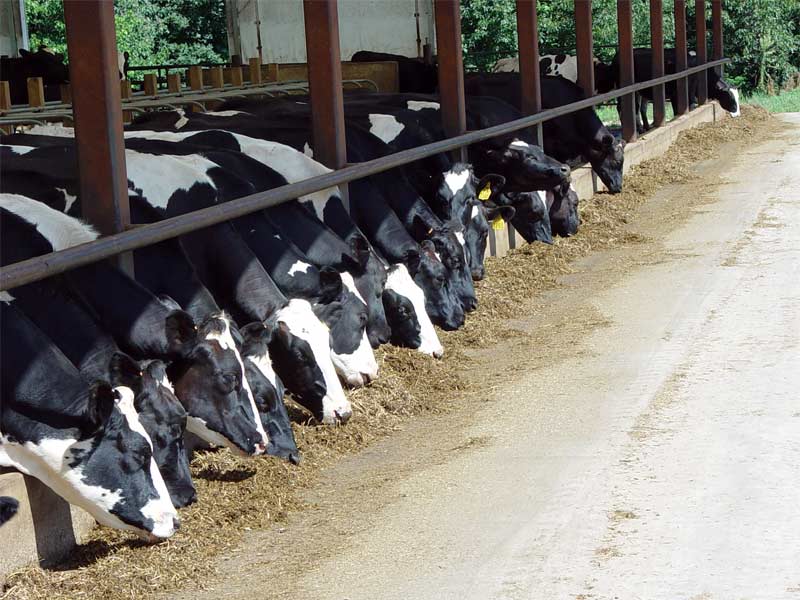

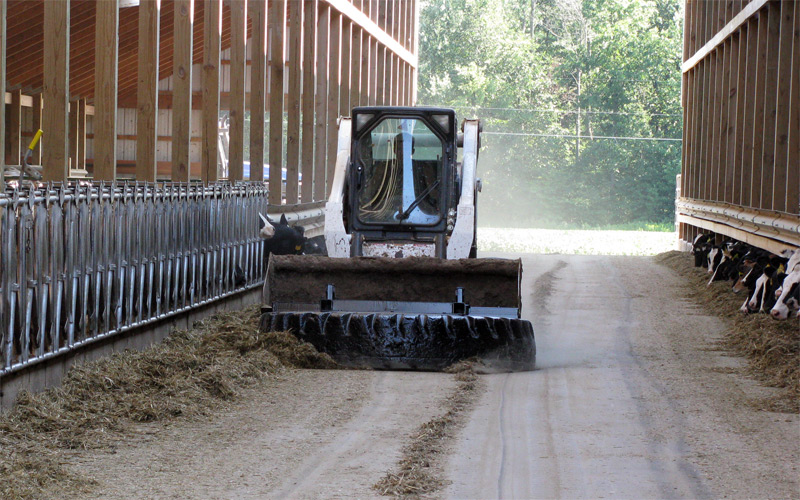

The feed alley scrapers are used to keep the feed close to cows. This makes cows more inquisitive encouraging them to get up and feed more.
- Blade scrapes clear of tire track so you won't run over feed.
Rubber blades have many advantages over traditional steel blades
- Outlast steel blades
- Takes vibration out
- Gentle on concrete
- Rubber blade does not rust
|
|
|
/-------------------------//>
/-------------------------//>

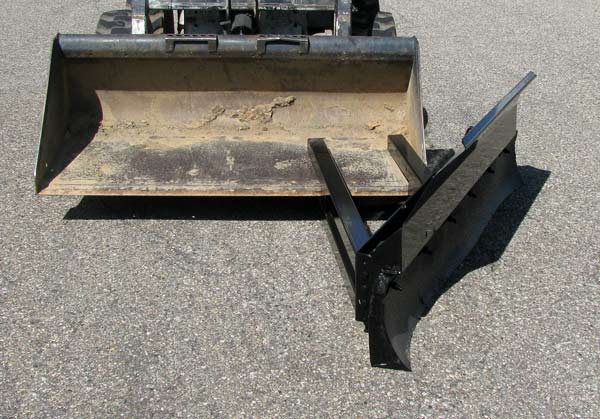

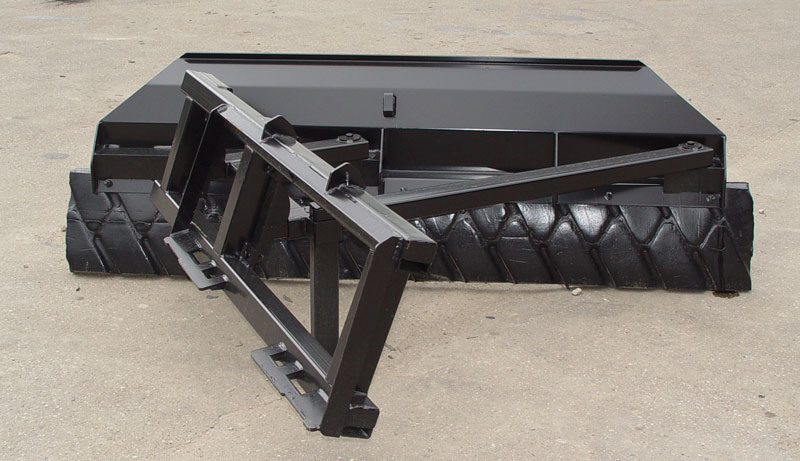

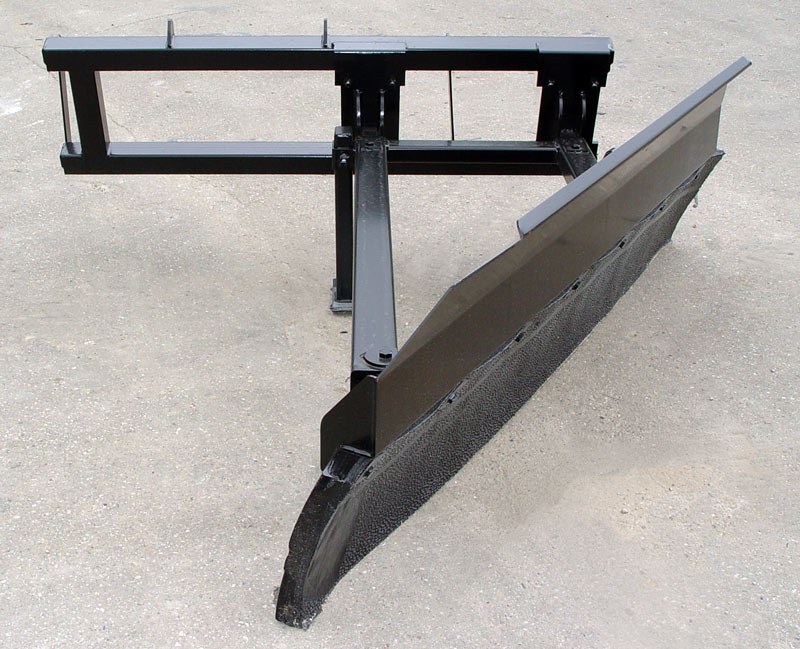

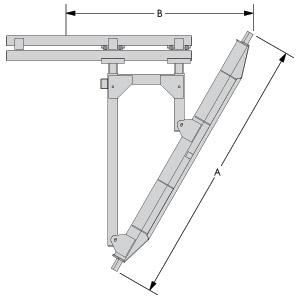

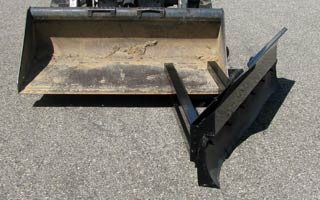

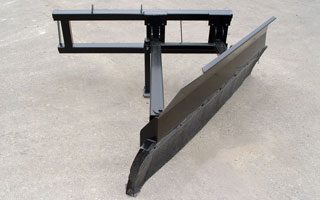

Stationary Blade |
M910 |
M905 |
Attachment Type |
Universal |
Bucket |
Blade Width (A) |
95 in (241 cm) |
78 in (198 cm) |
Blade From Center (B) |
65 in (165 cm) |
— |
Blade From Bucket Edge (C) |
— |
25 in (64 cm) |
Fixed blade with standard left side operation.
/-------------------------//>
/-------------------------//>
|
/-------------------------//>
/-------------------------//>

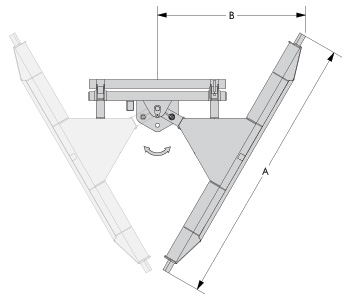

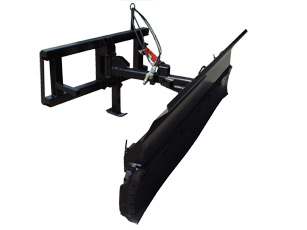

Rotating Blade |
M915 |
M935 |
Attachment Type |
Universal |
Universal |
Blade Width (A) |
95 in (241 cm) |
95 in (241 cm) |
Blade From Center (B) |
52 in (132 cm) |
52 in (132 cm) |
Rotate Type |
Hydraulic |
Manual |

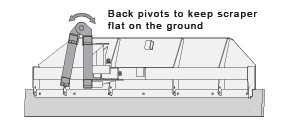

Back Pivot |
Optional |
Blade rotates for left or right side operation.
/-------------------------//>
/-------------------------//>
|
/-------------------------//>
/-------------------------//>
/-------------------------//>

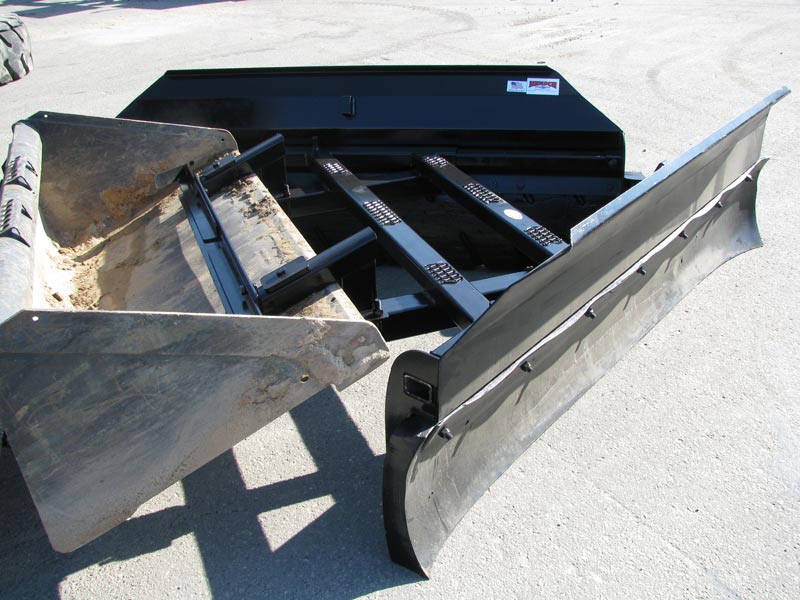

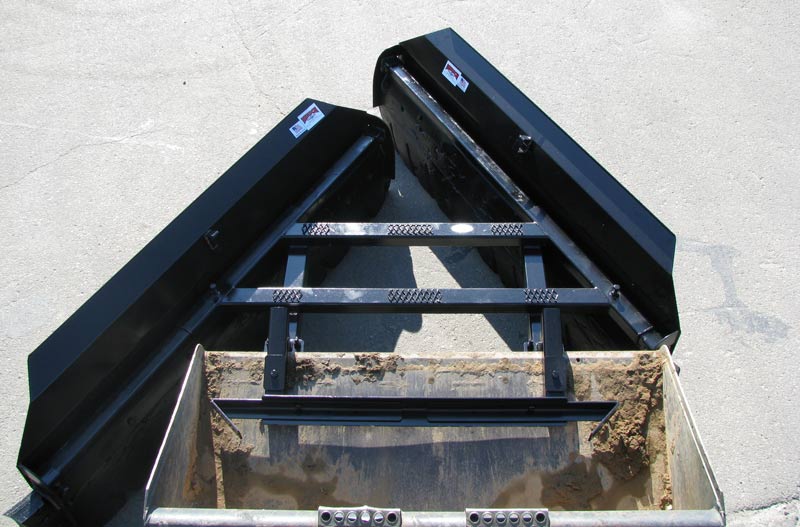

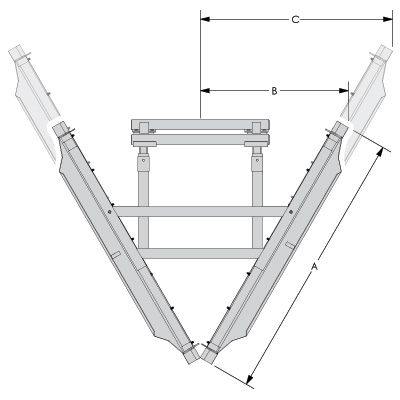

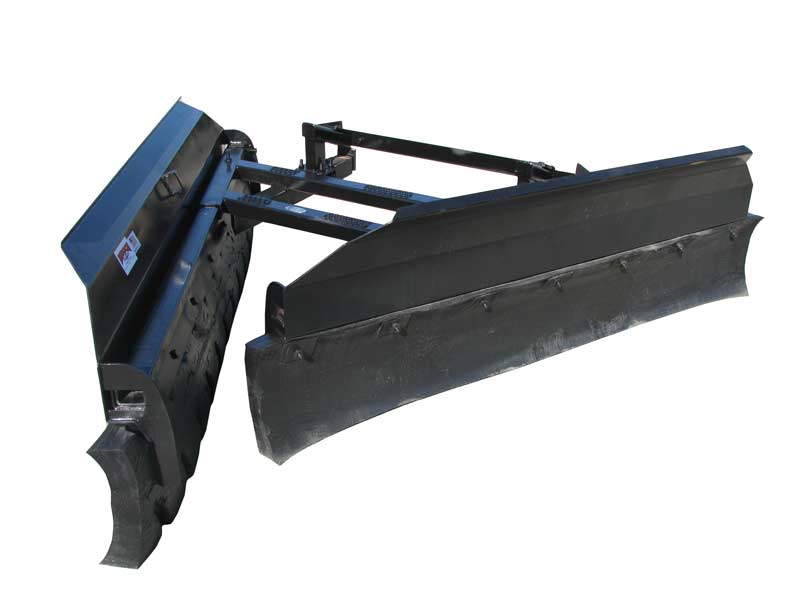

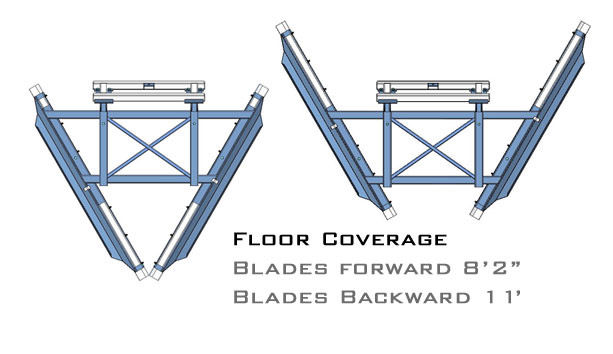

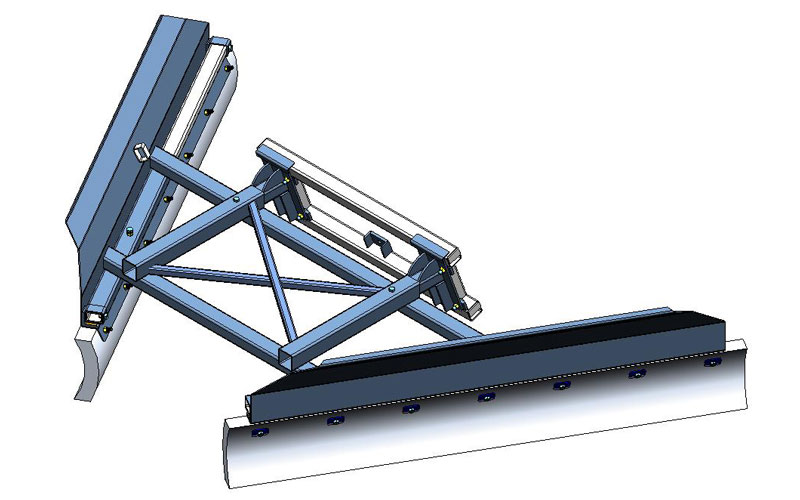

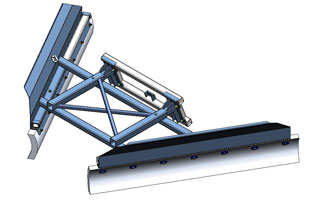

V Blade |
M920 |
M900 |
Attachment Type |
Universal |
Bucket |
Blade Width (A) |
95 in (241 cm) |
Blade Ahead (B) |
50 in (127 cm) |
Blade Back (C) |
67 in (170 cm) |
2 adjustable blades
/-------------------------//>
/-------------------------//>
/-------------------------//>
|
/-------------------------//>
/-------------------------//>
/-------------------------//>
