Trailer Side-Shooter


Simple Barn Design.

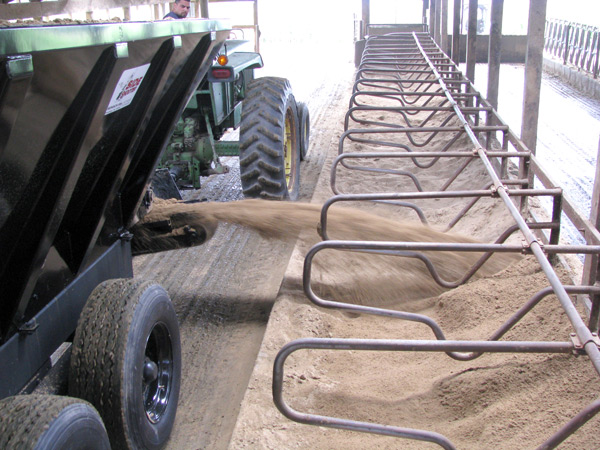

Trailer Side-Shooters are used to spread sand or sawdust in many applications including free stall barns. The trailer side-shooter uses a main conveyor to transfer the material to a cross conveyor that dispenses the material 3ft to 25ft..

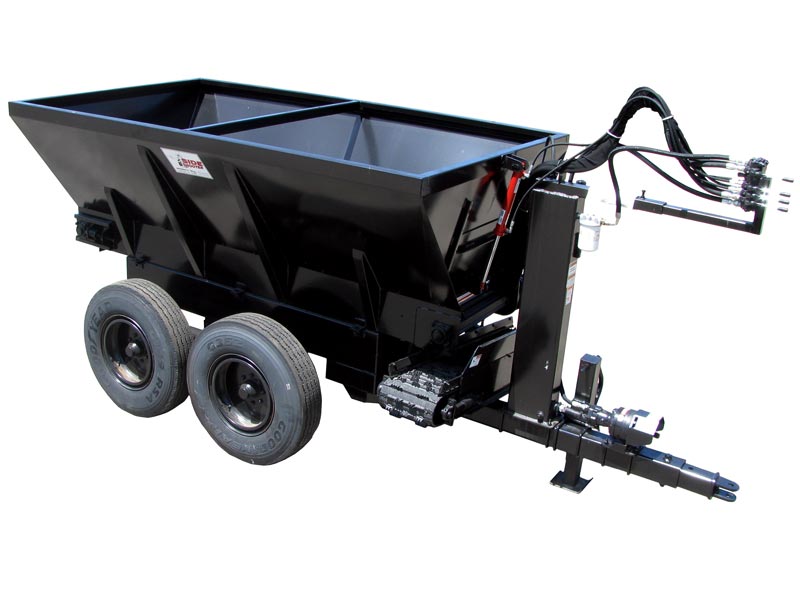

Trailer Side-Shooter

Box

- 3/16" sides and ends
- Boxed vertical side braces
- Corner reinforcement
- Up to a 68 degree slope
Allows total clean-out of almost all materials
Minimizes/eliminates need for UHMW liners

Main Conveyor

- AR 400 sprockets
- High torque planetary gearbox drive system
- 3/8" AR 400 steel top chain wear plate
- UWHM lower chain return

Cross Conveyor

- Oscillating conveyor
- Unloads in 2 1/2 minutes
- Spreads 3 - 25 ft
- Dispenses material from either side
- Aggressive positive drive belt
- 5/8" AR 400 steel wheels

Axles

- Walking Beam
- Heavy duty wheel center
- Tires 11R 22.5

Other

- 12,000 lb Jack
- Hydraulic controlled tank door
- Self-contained hydraulics w/ reservoir
just attach drive shaft to PTO
- 540 PTO standard, 1000 available

Options

- Wireless remote control
- Flotation tires
- Vibrator
- Height extensions

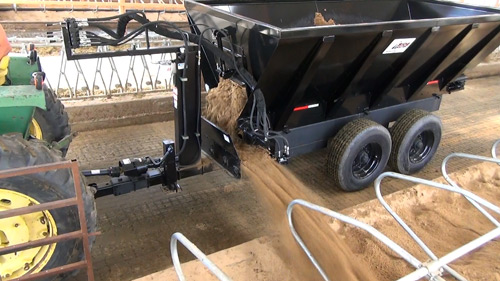

Side-Shooter Trailer

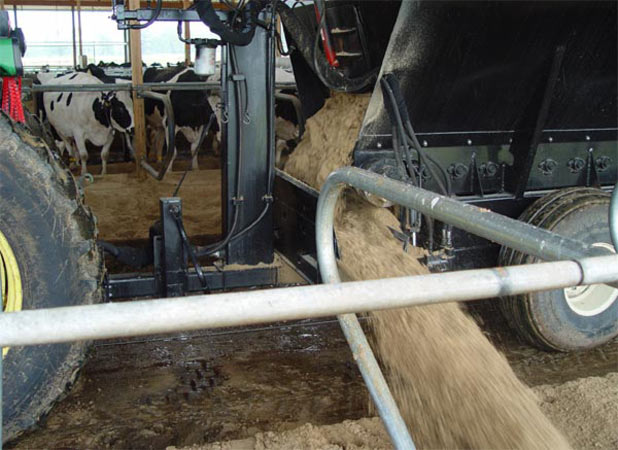

Side-Shooter Trailer

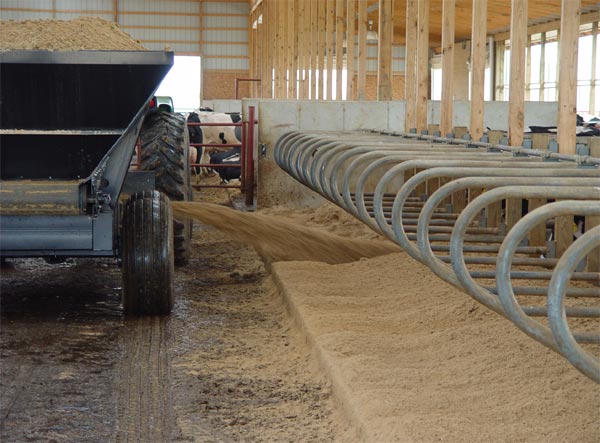

Side-Shooter Trailer

Material Capacity
Model Material Struck
Heaped Length
Width
Height Tank Length
Side Angle
Chain Width
Empty Weight
yd (m) yd (m) in (cm) in (cm) in (cm) in (cm) deg in (cm) lb (kg)
3350 Sand /Sawdust
7 (5.3) 10 (7.7) 208 (529) 84 (214) 90 (229) 144 (366) 54 30 (76) 8075 (3665)
3355 Sand /Sawdust 8 (6.1) 11 (8.4) 208 (529) 87 (221) 96 (244) 144 (366) 68 36 (92) 8450 (3835)
3380 Sawdust 10 (7.7) 14 (10.7) 256 (650) 90
(229) 96
(244) 192 (489) 54 36 (92) 9080
(4120)
3385 Sand /Sawdust 13 (10) 17 (13) 256 (650) 94 (239) 100 (254) 192 (489) 54 30 (76) 11400 (5170)
